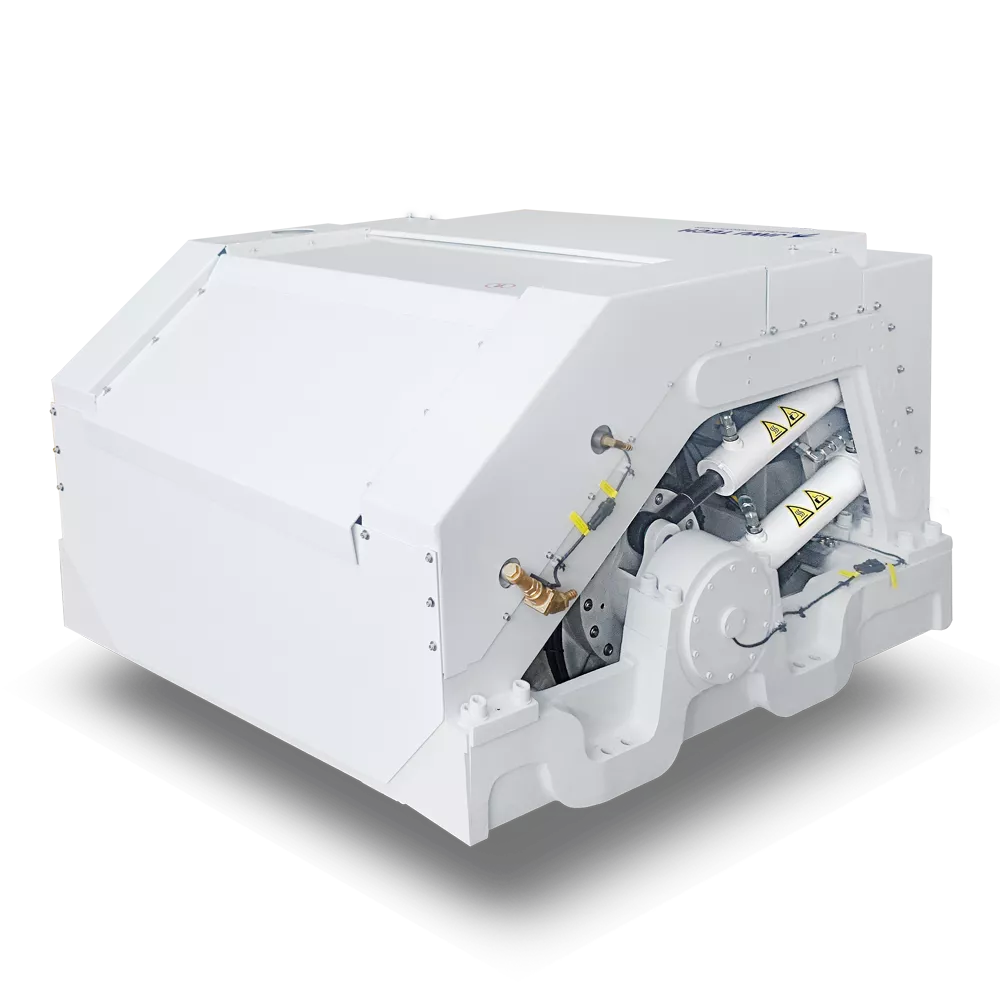

JW- 30

Higher stabilization capacity for larger boats

Increased stabilization for greater hull inertia and more demanding operating environments.

Typical applications

These are typical applications. Final selection depends on displacement and operating requirements.

Flybridge yacht
Explorer yacht
Expedition yacht
Power catamaran
Crew transfer vessel

Designed for greater hull inertia


JW-30 increases stabilization capacity for the greater hull inertia and more complex operating environments of large yachts and professional vessels. It supports long journeys, groups aboard and frequent marine use, continuously reducing roll at anchor, at low speed and underway.

50-90 t

Typical displacement

0 kn

Stabilization at zero speed

30 kN·m·s
Rated angular momentum

01 Greater stabilization capacity
Greater system capacity addresses higher displacement and hull inertia, providing more roll control for large yachts and professional vessels.
02 Adapted to demanding operation
03 Reliable continuous operation
Typical displacement
50-90 t
Equipment weight
1500 kg±5%
Rated speed
5500 RPM
Power supply
AC380V, Three Phase, 50/60HZ
Equipment dimensions
1140×1160×960 mm (44.9×45.7×37.8 inches)
View full specifications

Intuitive touch display


The helm touch display brings start, stop, lock, system status and real-time roll information together for clear, direct operation.

JW- 30 Is it right for your boat?

Tell us your boat type, dimensions and requirements.
We will recommend a suitable stabilization solution.
